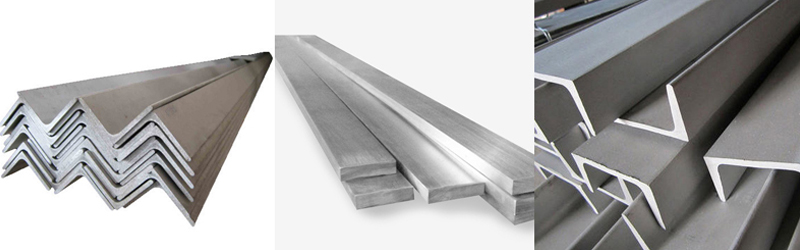

We supply a wide range of precisely engineered stainless steel Angle, Channels, Flat bar, made in compliance with international quality and safety standards. Our range comprises of stainless steel welded & seamless, Carbon Steel, Nickel, Alloy Angle, Channels, Flat bar. Available in different dimensions & grades, these stainless steel welded tubes and pipes are widely used in different industries like power, engineering, construction and many more. We offer products at highly competitive prices and deliver consignment within stipulated time.
Jirawala steel & Engineering Co. is a leading supplier of wide range of Stainless Steel Angles. Also known as L-shaped cross sections. Stainless Steel Angles is a hot rolled angle shape available in both equal or unequal edges and angle lenght. Stainless Steel Angles are used for all types of fabrication projects.
Size Range
| Size (mm) | Size (inch) | Thickness (mm) | Thickness (in Inches) |
| 25 x 25 | 1" x 1" | 3, 4, 5, 6 | 1/8", 1/6", 3/16", 1/4" |
| 30 x 30 | 1-1/6" X 1-1/6" | 3, 4, 5 | 1/8", 1/6", 3/16" |
| 32 x 32 | 1-1/4" X 1-1/4" | 3, 4, 5, 6 | 1/8", 1/6", 3/16", 3/16" |
| 35 x 35 | 1-3/8" X 1-3/8" | 3, 4 , 5 | 1/8", 1/6", 3/16" |
| 38.1 X 38.1 | 1-1/2" X 1-1/2" | 3.17, 4.76, 6.35 | 1/8", 3/16", 1/4" |
| 40 x 40 | 1-4/7" X 1-4/7" | 3, 4, 5, 6 | 1/8", 1/6", 3/16", 1/4" |
| 45 X 45 | 1-7/9" X 1-7/9" | 3, 4 , 5, 6 | 1/8", 1/6", 3/16", 3/16" |
| 50 x 50 | 2" X 2" | 3, 4, 5, 6 | 1/8", 1/6", 3/16", 1/4" |
| 60 x 60 | 2-3/8" X 2-3/8" | 5, 6 | 3/16", 1/4" |
| 63 x 63 | 2-1/2" X 2-1/2" | 5, 6 | 3/16", 1/4" |
| 65 x 65 | 2-5/9" X 2-5/9" | 5, 6 | 3/16", 1/4" |
| 70 x 70 | 2-3/4" X 2-3/4" | 6, 7, 8, 9, 10 | 1/4", 9/32", 5/16", 3/8",2/5" |
| 75 x 75 | 3" X3" | 6, 7, 8, 9, 10, 12 | 1/4", 9/32", 5/16", 3/8",2/5", 1/2" |
| 80 x 80 | 3-1/8" X 3-1/8" | 6, 7, 8, 9, 10 | 1/4" , 9/32", 5/16", 3/8", 2/5" |
| 90 X 90 | 3-1/2" X 3-1/2" | 6, 9 | 1/4", 3/8" |
| 100 X 100 | 4" X 4 | 6, 8, 9, 10 | 1/4", 5/16", 3/8", 2/5" |
| 101.6 X 101.6 | 4" X 4 | 6.35, 9.52, 12.7 | 1/4", 3/8", 1/2" |
Channels
Jirawala steel & Engineering Co. is a leading supplier of wide range of Stainless Steel Channels. Stainless steel channel is shaped using a vertical web with top and bottom flanges at a 90 degree angle to the web and inside radius corners to increase the channel’s strength. It can be extruded, hot rolled or laser-fused. It is used for applications that require the high strength, corrosion-resistance, toughness, and easy sanitizing properties of stainless steel. These include raceways, braces, supports, and frames for machinery, equipment and housings in corrosive environments.
Channel Sizes
| Products | Size Range | Specifications | Supply Conditions | Tolerance |
| SS Channels |
50.80 x 25.40 x 4.76 mm 50.80 x 25.40 x 6.35 mm 75 x 40 x 4.7 x 6.9 mm 76.20 x 38.10 x 6.35 mm 80 x 40 x 6 mm 80 x 45 x 6 x 8 mm 100 x 50 x 6 x 8.5 mm 101.60 x 40.13 x 4.57 mm 101.60 x 43.69 x 7.93 mm 101.60 x 44.45 x 6.35 mm 130 x 65 x 6 x 6 mm 152.40 x 48.77 x 5.08 mm |
EN, DIN, ASTM, AISI, ASME, JIS, NACE | Hot Rolled Annealed and Pickled | ASTM A484, EN 10279 |
Flat Bar Sizes
Size Range
| Size (mm) | Size (inch) | Thickness (mm) | Thickness (in Inches) |
| 22 mm | 7/8” | 17 mm & 18 mm | 2/3” - 5/7" |
| 25mm | 1" | 5 mm to 20 mm | 3/16” - 4/5” |
| 30 mm | 1-3/16" | 5 mm to 20 mm | 3/16” - 4/5” |
| 32mm | 1-1/4" | 6 mm to 20 mm | 1/4” - 4/5” |
| 35mm | 1-3/8" | 5 mm to 20 mm | 3/16” - 3/16” |
| 40mm | 1-4/7" | 5 mm to 25 mm | 3/16” - 1” |
| 45mm | 1-7/9" | 5 mm to 25 mm | 3/16” - 1” |
| 47 mm | 1-6/7" | 17,25 & 32 mm | 2/3”, 1” & 1-1/4” |
| 50mm | 2" | 5 mm to 32 mm | 3/16” - 1-1/4” |
| 55mm | 2-1/16” | 5 mm to 25 mm | 3/16” - 1” |
| 57 mm | 2-1/4” | 32 mm | 1-1/4” |
| 60 mm | 2-3/8” | 5 mm to 35 mm | 3/16” - 1-3/8” |
| 63mm | 2-1/2" | 10 mm to 30 mm | 3/8” - 1-3/16” |
| 65mm | 2-5/9" | 10 to 30 & 35 mm | 3/8” - 1-3/16”, & 1-3/8” |
| 70mm | 2-3/4" | 6 mm to 25 mm & 40 mm | 1/4” - 1”, & 1-4/7” |
| 75mm | 3" | 8 mm to 25 mm | 5/16” - 1” |
| 80mm | 3-1/8" | 8 mm to 20 mm | 5/16” - 4/5” |
| 90mm | 3-1/2" | 8 mm to 20 mm | 5/16”- 4/5” |
| 100mm | 4" | 8, 10, 12 | 5/16”, 3/8”, 1/2” |
| Angles, Channel, Flat Bars | Specifications | |||
|---|---|---|---|---|
| Types | Angles, Channel and Flat Bars, SS Flat, SS Angel, SS Channel, SS Circle | |||
| Size | 2 mm To 3000 mm Long & Above | |||
| Length | 1 to 6 Meters | |||
| Grades | ||||
| Stainless Steel | ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L | |||
| Super Duplex Steel | S32750 | |||
| Duplex Steel | ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760. | |||
| Carbon Steel | ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91 | |||
| Alloys Steel | ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91. | |||
| Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201 | |||
| Titanium | Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI | |||
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L | |||
| Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G | |||
| Molybdenum | ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum | |||
| Cobalt | Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21 | |||
| Niobium | ASTM B394, R04200 R04210 | |||
| Nimonic | Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc | |||
| Tungsten | W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten | |||
| Nichrome | Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc | |||
| Magnesium | Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc. | |||
| Tantalum | Tantalum - Grade 1. | |||
| Monel | Monel 400, Monel k500 | |||
| MU-METAL | MU-METAL | |||
| Zirconium | Zirconium 702, Zirconium 705,Zirconium 705, Zirconium-2, Zirconium-4 | |||
| Beryllium Copper | Alloy 25 UNSC17200 | |||
| Aluminium | 1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175 | |||
| Copper Alloys | C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000 | |||
